Settings

The settings sidebar slides in from the left, opened with the button at the left end of the top bar. It has three tabs — Fretboard, Audio, and Icon — and two rows below them: Fretling Pro and About Fretling. It reopens on the tab you left it on.

Not everything lives in here. The settings you change constantly sit on the chip bars that bracket the neck: marker display above it, Visual Groupings below it. The sidebar holds the things you set once and leave alone.

Fretboard tab

Three groups. A row appears only in the modes it applies to — in Scales, Practice Focus holds no switch and Shape Overlays is CAGED Display alone. A row that applies but waits on something else, like the chord-shape rows while Chord Shapes is off, dims rather than hides.

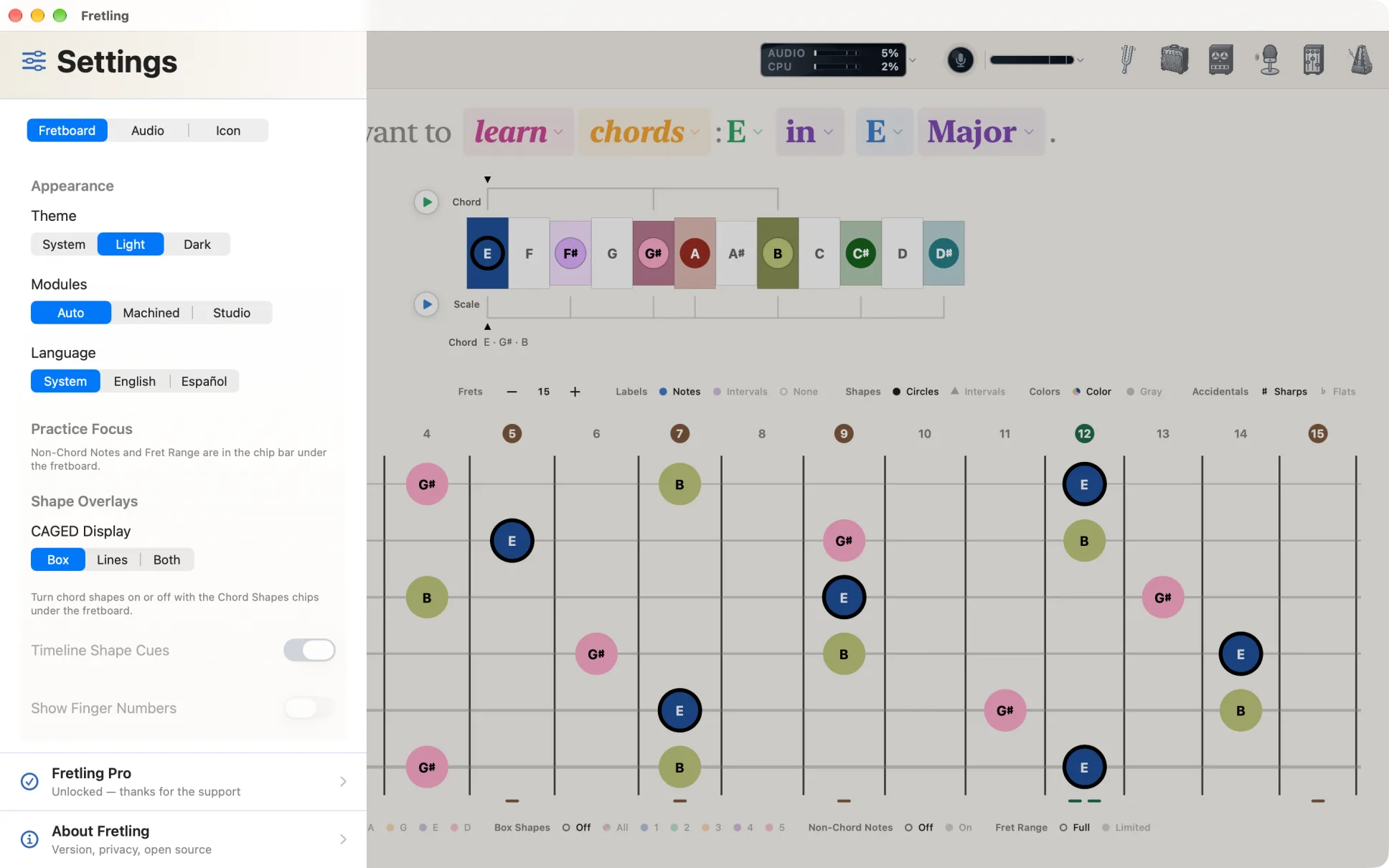

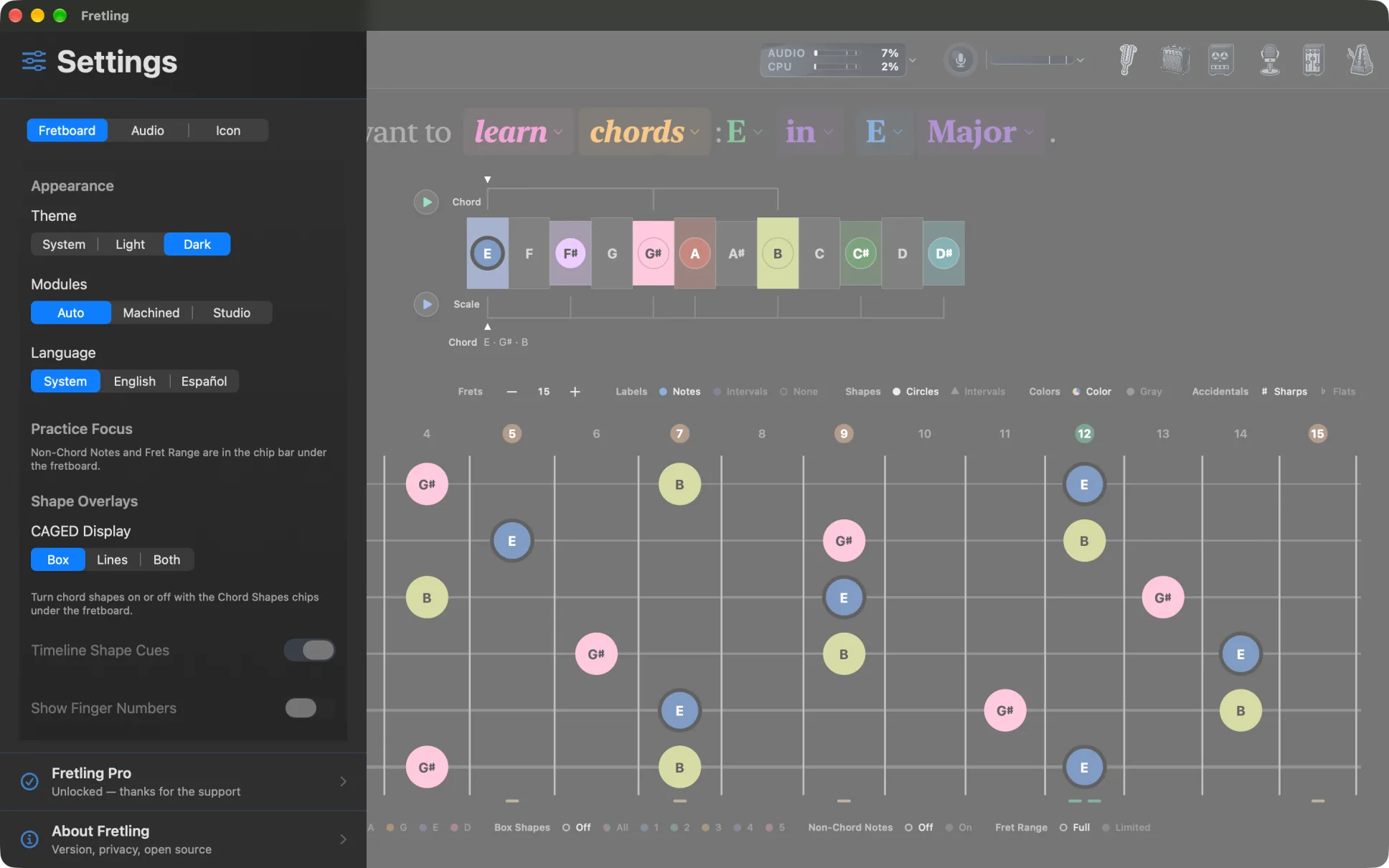

The settings sidebar open on the Fretboard tab, showing the Appearance, Practice Focus and Shape Overlays groups. The settings sidebar open on the Fretboard tab, showing the Appearance, Practice Focus and Shape Overlays groups.
The Fretboard tab, shown in Chords mode so every Shape Overlays row applies.

Appearance

SettingOptionsDescription
ThemeSystem (default) / Light / DarkFollow the device appearance, or pin Fretling to light or dark.
ModulesAuto (default) / Machined / StudioHow the floating practice tools are drawn. Auto gives the light canvas the Machined panel and the dark canvas the Studio one; pin either to keep it everywhere.
LanguageSystem (default) / English / EspañolFollow the device language, or pin Fretling to English or Spanish. A change takes effect when the app next opens: Fretling offers to relaunch right away on Mac (Relaunch Now) or to quit on iPad (Quit Fretling), or choose Later and it switches on its own the next time you open it. The caption under the row says so plainly: Applies the next time Fretling opens.

Marker settings are not here — labels, shapes and colors all live on the marker display bar above the neck, where they stay visible while you play.

Practice Focus

SettingOptionsDescription
Show Triad LinesToggleTriads mode only. Joins each triad voicing on the string set picked under the neck with a line; with Strings on All it draws nothing.

Non-Chord Notes and Fret Range are not in the sidebar. They are chips in the Visual Groupings bar under the neck: both are flipped mid-practice and both change what the neck shows, so they belong beside it.

Shape Overlays

SettingOptionsDescription
CAGED DisplayBox (default) / Lines / BothHow a CAGED shape is drawn: region outline, connecting lines through its notes, or both.
Timeline Shape CuesToggleChords mode. Its cues belong to a screen this version of Fretling does not include, so in Chords it changes nothing.
Show Finger NumbersToggleChords mode. Prints finger numbers on chord shapes. Requires chord shapes to be on.
CAGED InteractionCoexist (default) / Exclusive / Replace CAGEDChords mode. What happens when chord shapes and CAGED are both on — draw both, let shapes take over while they are on, or have shapes replace CAGED entirely (which also removes the CAGED chips from Visual Groupings). A line under the menu says what the current choice does.

Chord shapes themselves are switched on and off in the Chord Shapes group of the Visual Groupings bar under the neck, not here — it is an overlay you reach for often, so it sits beside the fretboard it changes. The two rows above follow it and dim while it is off.

The whole Shape Overlays group is dimmed while you are identifying a chord — there is no key to lay a shape against.

Audio tab

Playback

SettingOptionsDescription
InstrumentAcoustic Piano, Acoustic Guitar (Nylon), Acoustic Guitar (Steel) — the default, Jazz Guitar, Clean Electric Guitar, Sine WaveThe voice used when you tap notes on the neck. The four guitars are modeled — each note is a string computed as it plays — and Sine Wave is synthesized. The piano is recorded samples, from two sources bundled with the app — the FreePats General MIDI set, which is public domain, and GeneralUser GS. Both are credited in About.

Chord Pad Layers

Chords can be voiced by stacking up to three instruments, which is how you get a pad behind a chord rather than one flat sample. Add Layer adds one, up to that maximum; it dims at three, and a layer's remove button dims while it is the only one left.

Each layer carries four controls of its own:

A fresh install starts with three layers already stacked — Pad 2 (Warm) at 1.0, String Ensemble 1 at 0.55, and Choir Aahs at 0.4. A layer you add yourself starts as Pad 2 (Warm) at 0.5. Double-click any slider to put it back to the default for that slot.

Humanize

One slider in a group of its own below the layers, from None to ±24, default ±8. It varies each note's velocity a little so repeated chords don't sound machine-stamped. It belongs to the pad as a whole rather than to one layer, which is why it sits once underneath the list: it perturbs every note the layers play.

Layers apply to chord playback — the round Chord transport on the timeline and the chords the Chord Atlas plays as you pick. Tapping single notes, and Hear on a chord you identify, always use the Instrument setting above.

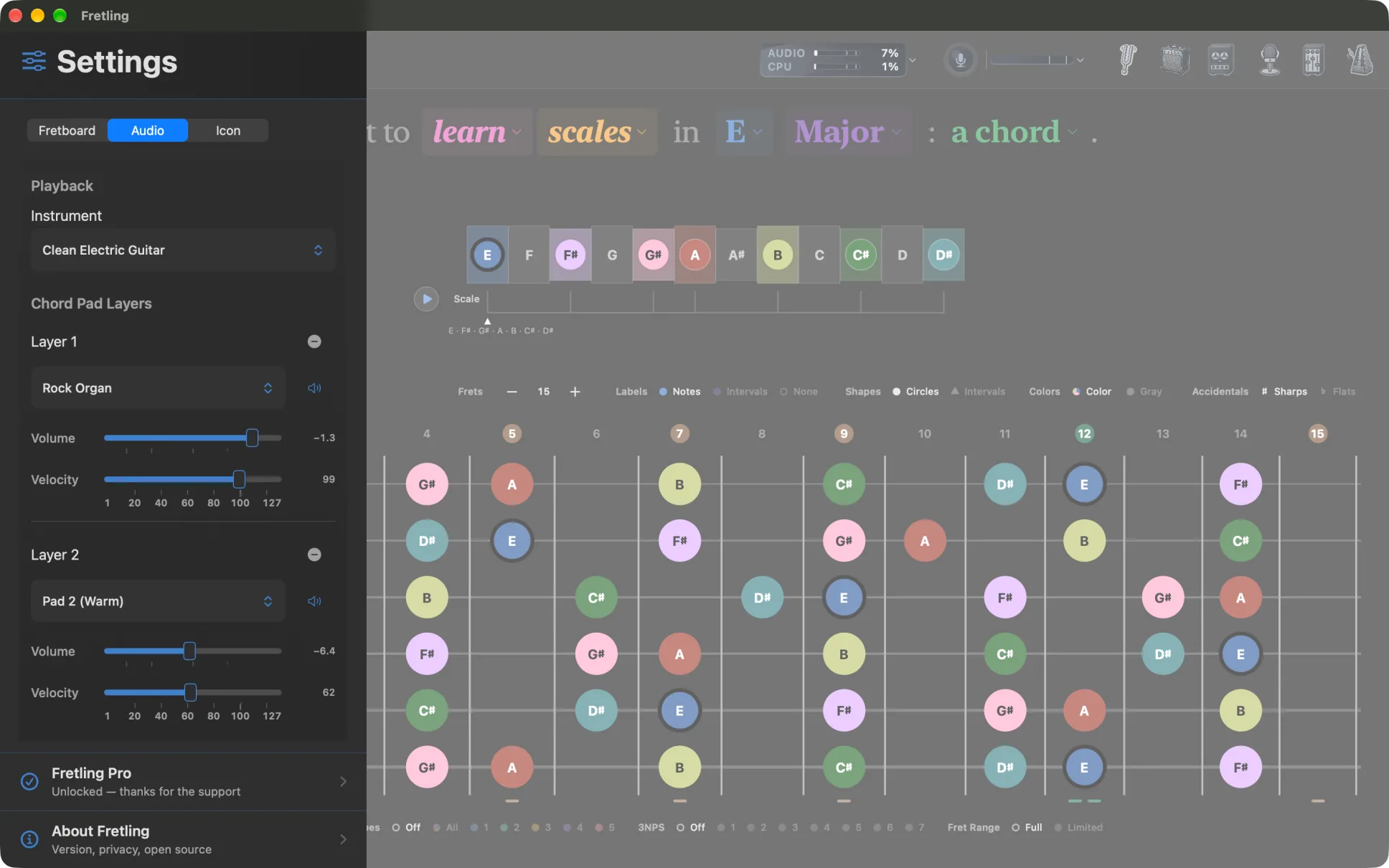

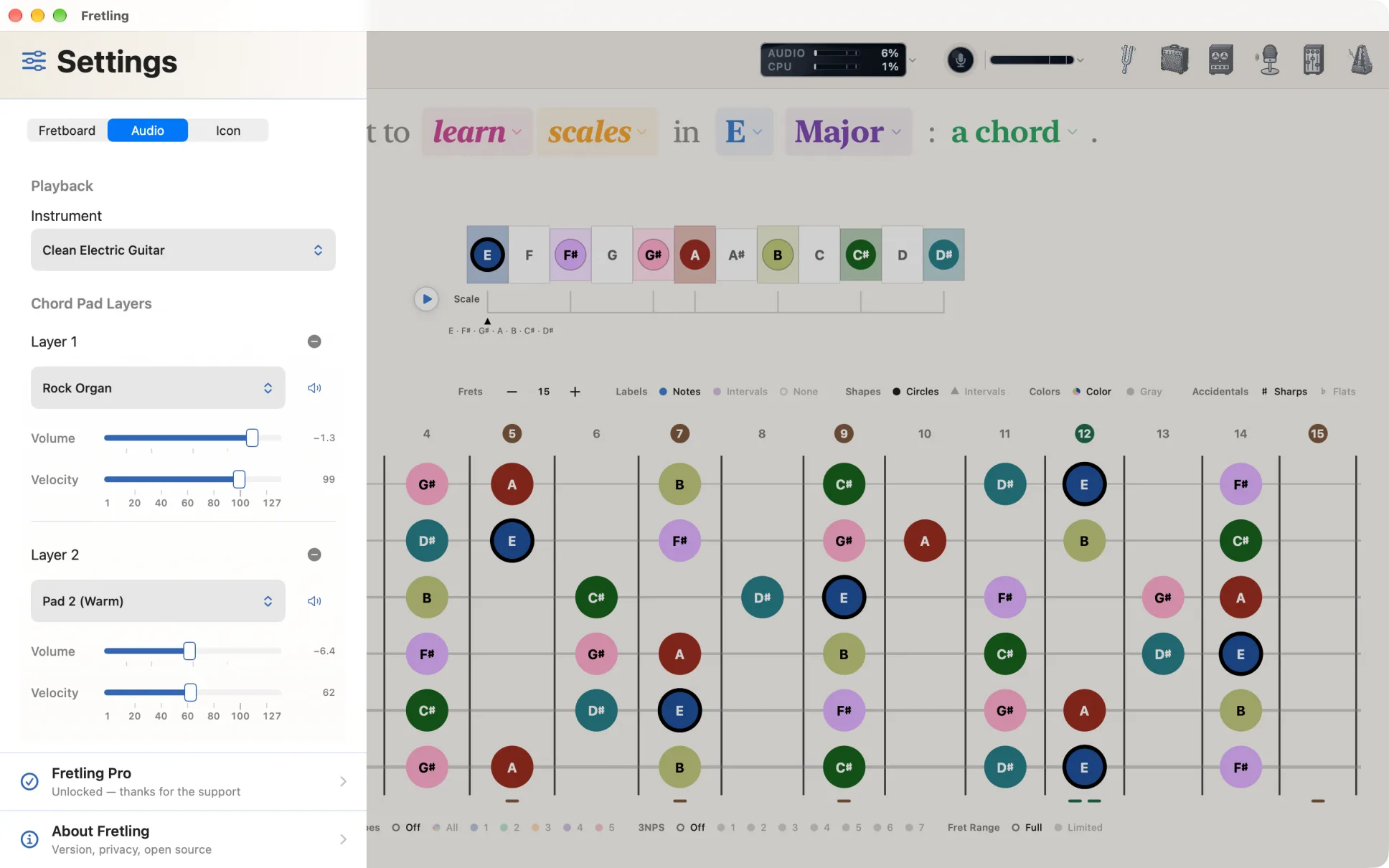

The settings sidebar open on the Audio tab, showing the instrument picker and the stacked chord pad layers. The settings sidebar open on the Audio tab, showing the instrument picker and the stacked chord pad layers.
The Audio tab: one instrument for single notes, up to three layers for chords.

Icon tab

Fretling ships fourteen app icons; pick one and the home screen or Dock icon changes. The choices are Warm hex, Classic, Rich wood, Fret window, Blush sky, Soft aurora, Watercolor, Champagne, Interval halo, Fret monogram, Constellation, Ember, Ultraviolet, and Daylight. Each is shown as a preview tile before you commit.

The settings sidebar open on the Icon tab, showing the fourteen app icons as a grid of preview tiles. The settings sidebar open on the Icon tab, showing the fourteen app icons as a grid of preview tiles.
Fourteen icons to choose from; the choice is saved.

The Fretling Pro row

Above About, a Fretling Pro row is the only way into the unlock sheet. It reads its own state rather than always saying the same thing:

Restore Purchases lives on the unlock sheet itself, not in this row, so a new Mac, iPad or iPhone restores from the same place the purchase happens.

About and tips

At the bottom of the sidebar, About Fretling opens a screen with the version and build number, a plain-language privacy summary, and seven credits for the open-source work Fretling is built on: the chord fingering database, the two sound sources behind instrument playback (the FreePats General MIDI set and GeneralUser GS), the recorded drum kit behind the Drums pack, and the Neural Amp Modeler engine with its two dependencies.

The About screen also holds an optional tip jar. Tips are ordinary in-app purchases handled by Apple, in three sizes. They unlock nothing — every feature is available whether or not you ever tip.

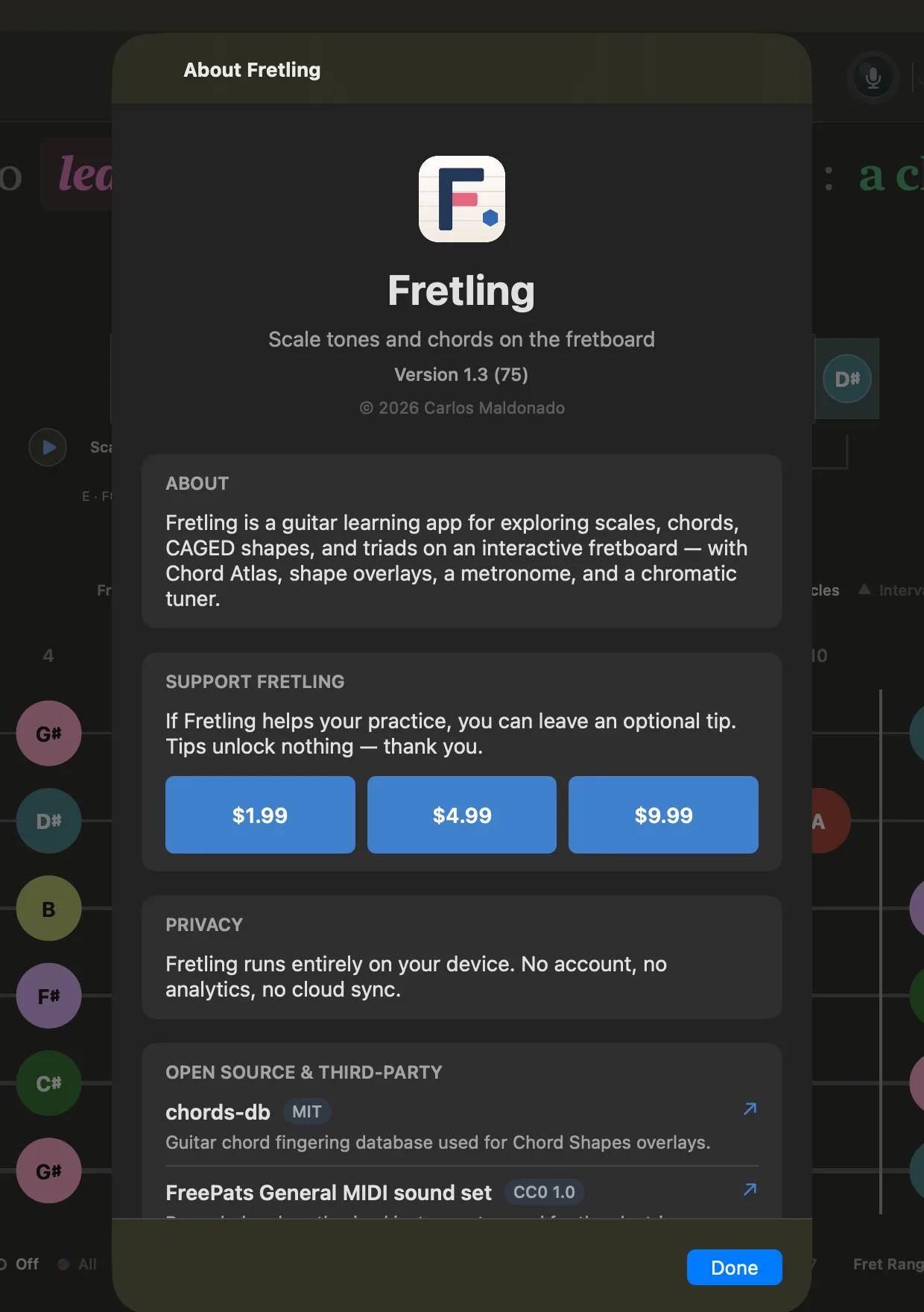

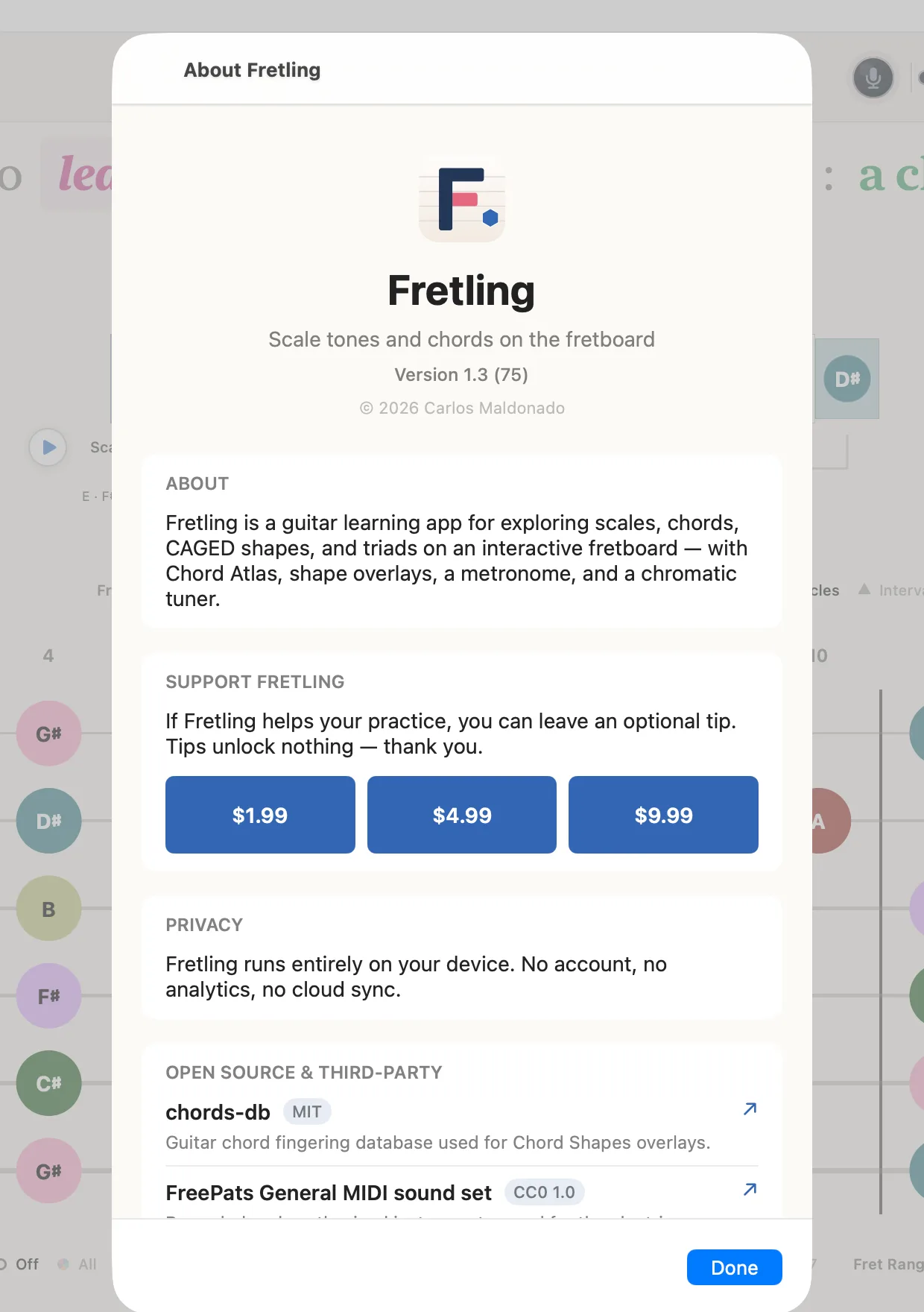

The About sheet showing the version and build, a summary of what Fretling is, the optional tip jar, the privacy statement and the open-source credits. The About sheet showing the version and build, a summary of what Fretling is, the optional tip jar, the privacy statement and the open-source credits.
About: version, privacy in one line, credits, and the optional tip jar.
